Using All Modules
Now that we’ve gone through all of the modules individually, we can start to use them all together, and certain arguments that act in multiple modules.
Here, we’ll run all modules in the pipeline together to show what the output looks like. For this, we’ll use the light curves from the SDSS-RM object RM160, with data for \({\rm H}\alpha\), \({\rm H}\beta\), and \({\rm MgII}\).
Define Parameters
[23]:
output_dir = 'tot_output/'
drw_rej_params = {
'use_for_javelin': True
}
pyccf_params = {
'nsim': 5000,
'interp': 1.5
}
pyzdcf_params = {
'nsim': 2000,
'run_plike': True,
'plike_dir': 'pypetal/plike_v4/',
}
pyroa_params = {
'nchain': 15000,
'nburn': 10000,
'add_var': True,
'delay_dist': True
}
javelin_params = {
'nchain': 300,
'nburn': 100,
'nwalkers': 100,
'nbin': 50
}
weighting_params = {
'k': 2,
'width': 20
}
lag_bounds = [-1000,1000]
Run pyPetal
[2]:
%matplotlib inline
import pypetal.pipeline as pl
main_dir = 'pypetal/examples/dat/rm160_'
line_names = ['cont', 'ha', 'hb', 'mg2']
filenames = [ main_dir + x + '.dat' for x in line_names ]
[3]:
_ = pl.run_pipeline( output_dir, filenames, line_names,
run_drw_rej=True, drw_rej_params=drw_rej_params,
run_pyccf=True, pyccf_params=pyccf_params,
run_pyzdcf=True, pyzdcf_params=pyzdcf_params,
run_pyroa=True, pyroa_params=pyroa_params,
verbose=True,
plot=True,
file_fmt='ascii',
time_unit='d',
lag_bounds=lag_bounds,
threads=45)

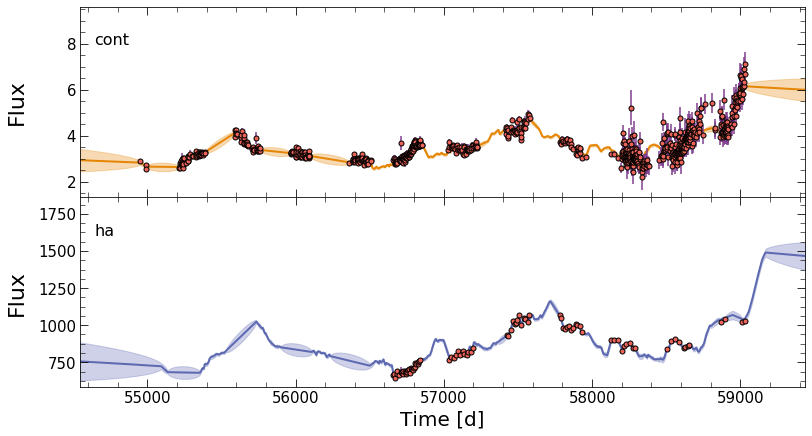

Performing DRW rejection
------------------------
jitter: True
nsig: 3
nwalker: 100
nburn: 300
nchain: 1000
clip: array
reject_data: [ True False False False]
use_for_javelin: True
------------------------

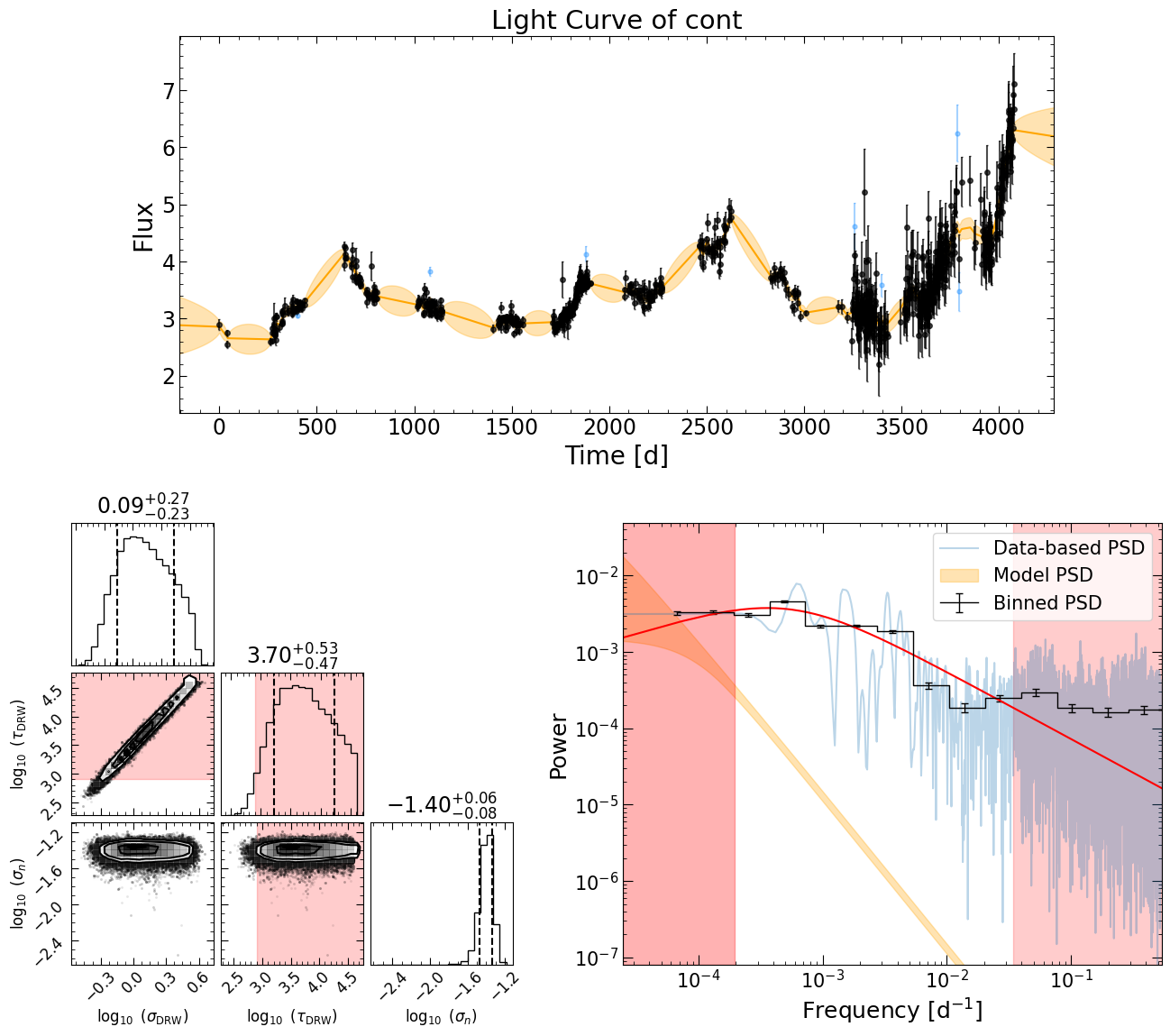

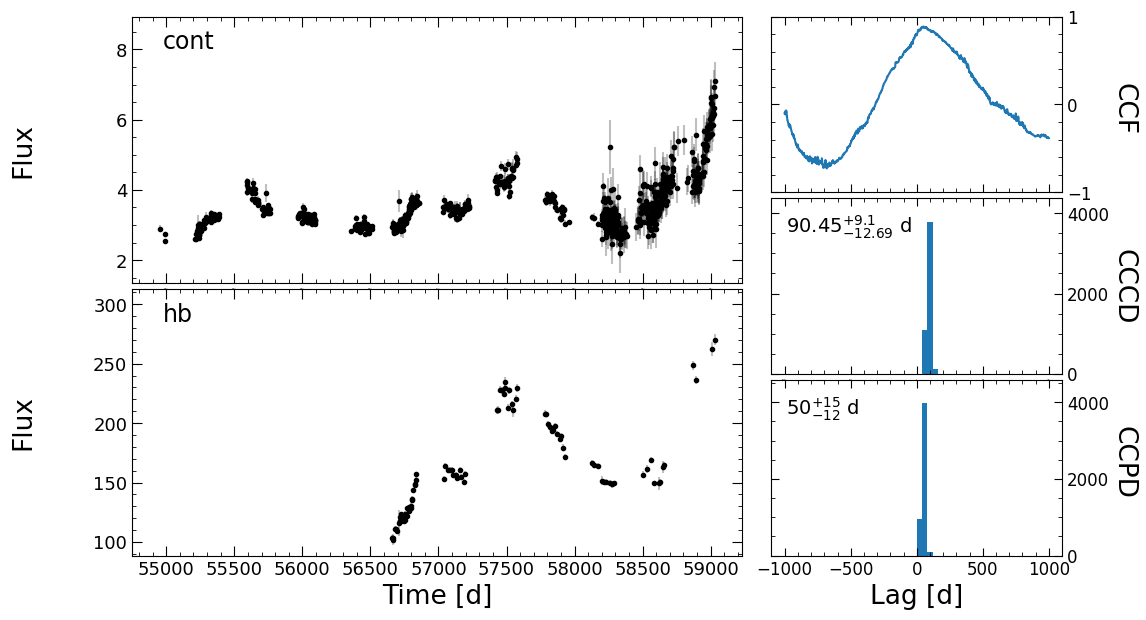

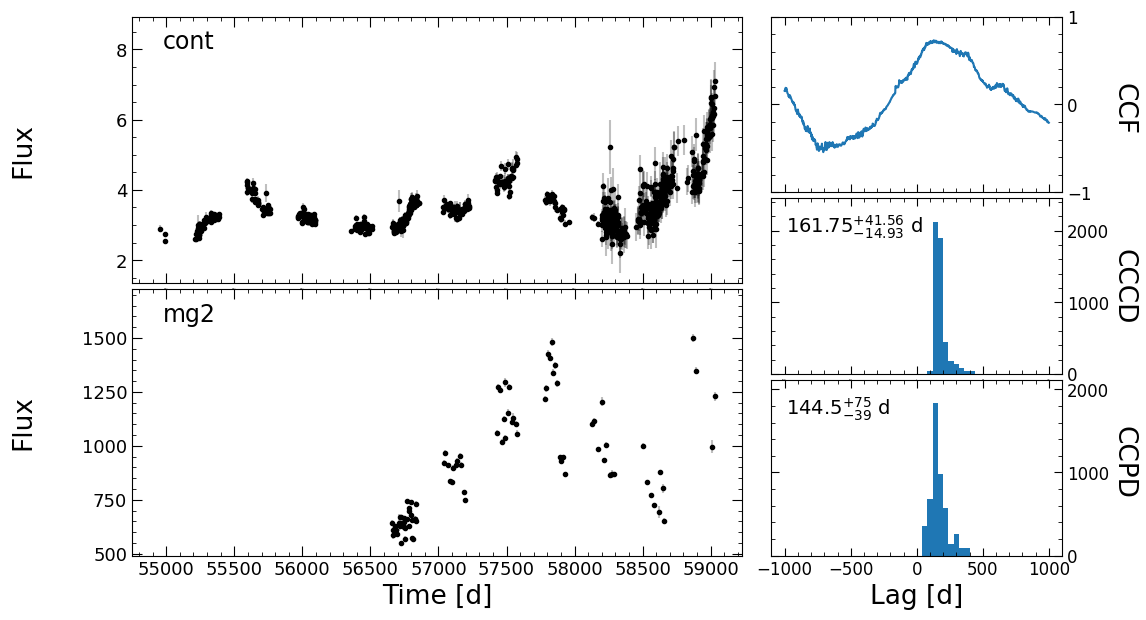

Running pyCCF
-----------------
lag_bounds: array
interp: 1.5
nsim: 5000
mcmode: 0
sigmode: 0.2
thres: 0.8
nbin: 50
-----------------
Failed centroids: 0
Failed peaks: 0
Failed centroids: 0
Failed peaks: 0
Failed centroids: 0
Failed peaks: 0

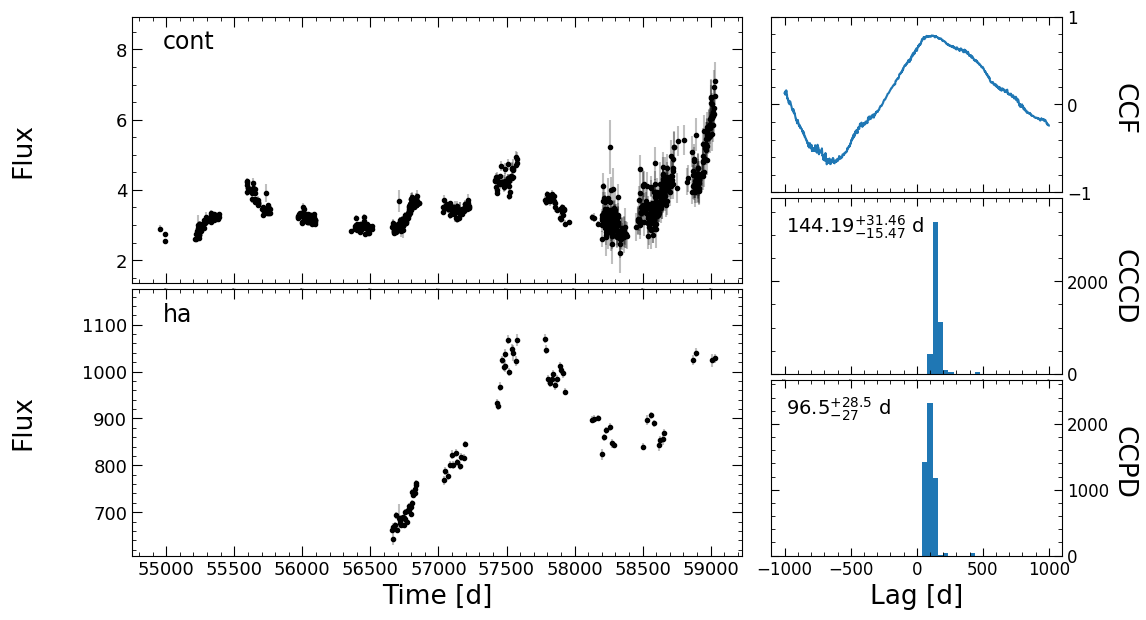

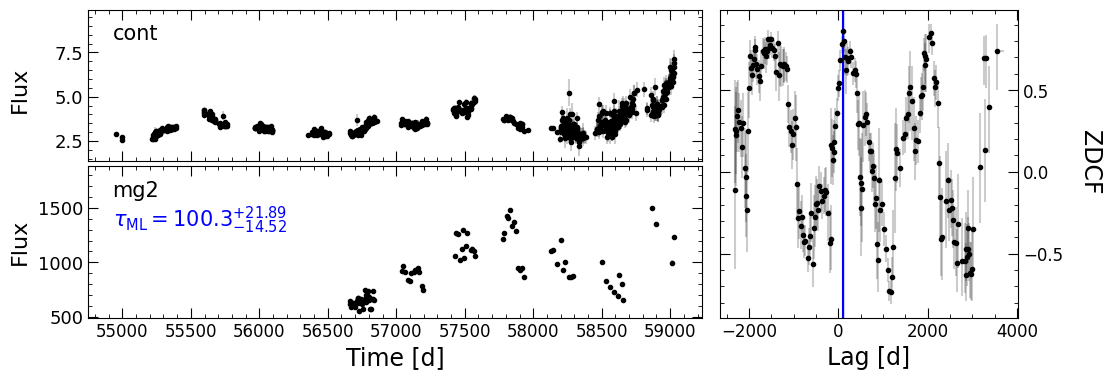

Running pyZDCF
----------------------
nsim: 2000
minpts: 0
uniform_sampling: False
omit_zero_lags: True
sparse: auto
prefix: zdcf
run_plike: True
plike_dir: pypetal/plike_v4/
----------------------
Executing PLIKE
Executing PLIKE
Executing PLIKE

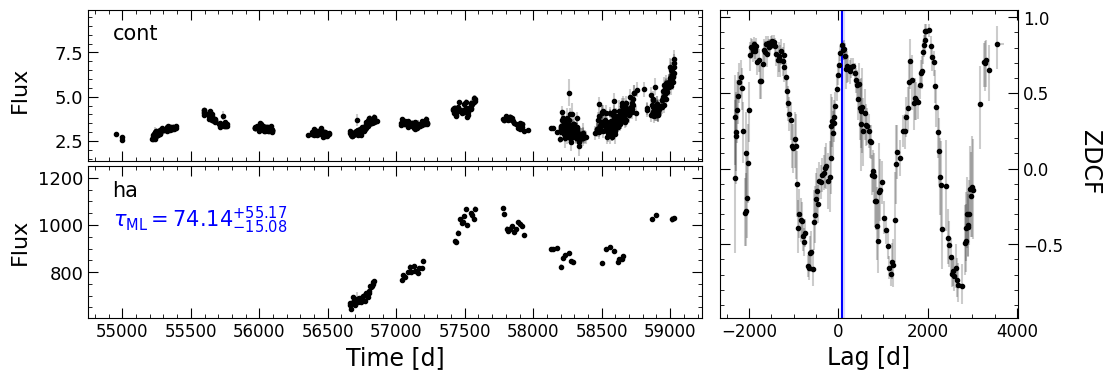

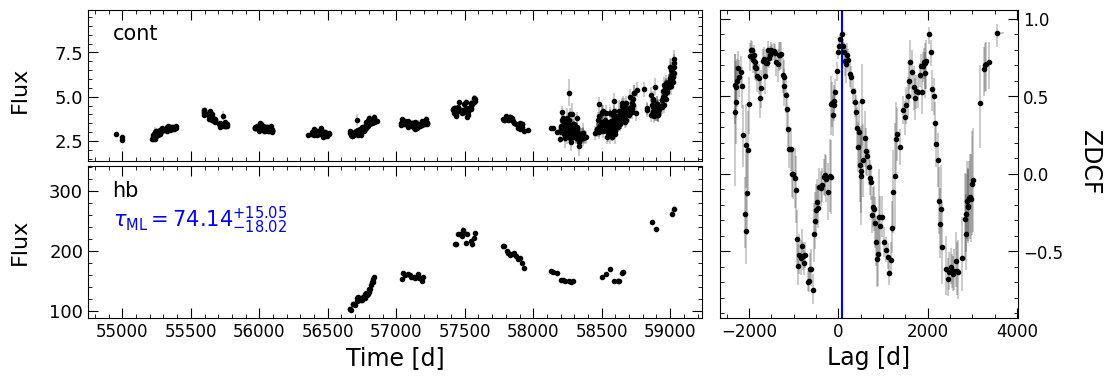

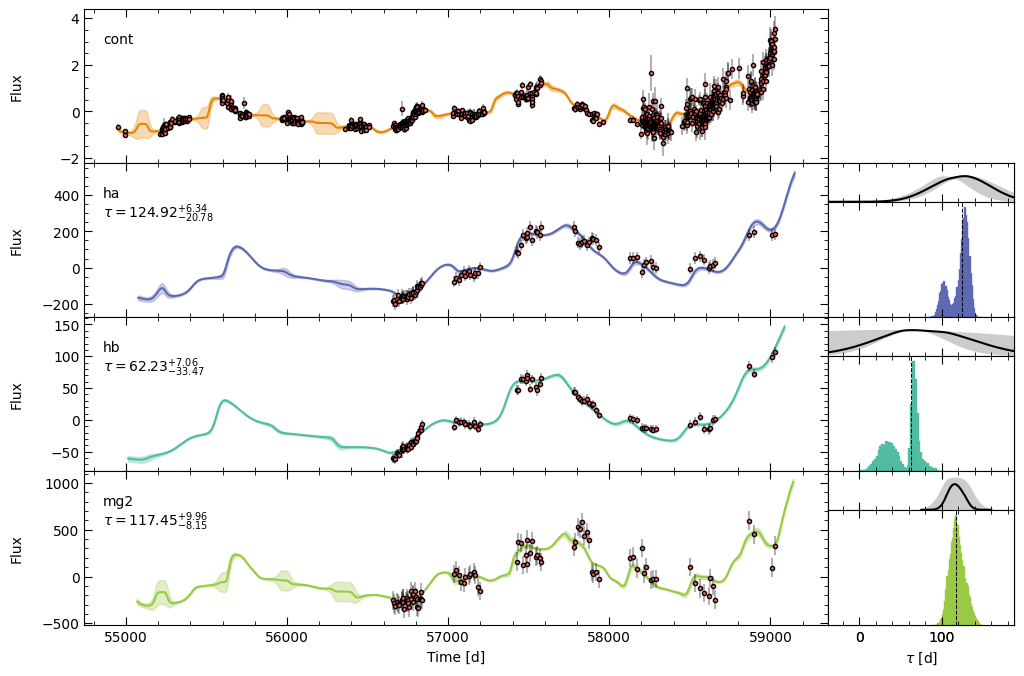

Running PyROA
----------------
nburn: 10000
nchain: 15000
init_tau: [10.0, 10.0, 10.0]
subtract_mean: True
div_mean: False
add_var: True
delay_dist: True
psi_types: ['Gaussian', 'Gaussian', 'Gaussian']
together: True
objname: pyroa
----------------
Initial Parameter Values
A0 B0 σ0 A1 B1 τ1 Δ1 σ1 A2 B2 τ2 Δ2 σ2 A3 B3 τ3 Δ3 σ3 Δ
-------- ----------- ---- ------- ----------- ---- ---- ---- ------- ----------- ---- ---- ---- ------- ------------ ---- ---- ---- ---
0.722173 2.29207e-16 0.01 132.496 9.85286e-14 10 1 0.01 40.3867 6.00014e-15 10 1 0.01 255.289 -5.05275e-14 10 1 0.01 10
NWalkers=42
100%|██████████| 15000/15000 [59:29<00:00, 4.20it/s]
Filter: cont
Mean Delay, error: 0.00 (fixed)
Filter: ha
Mean Delay, error: 124.91366 (+ 20.71345 - 6.34378)
Filter: hb
Mean Delay, error: 62.24537 (+ 33.51759 - 7.05950)
Filter: mg2
Mean Delay, error: 117.42968 (+ 8.12748 - 9.87701)

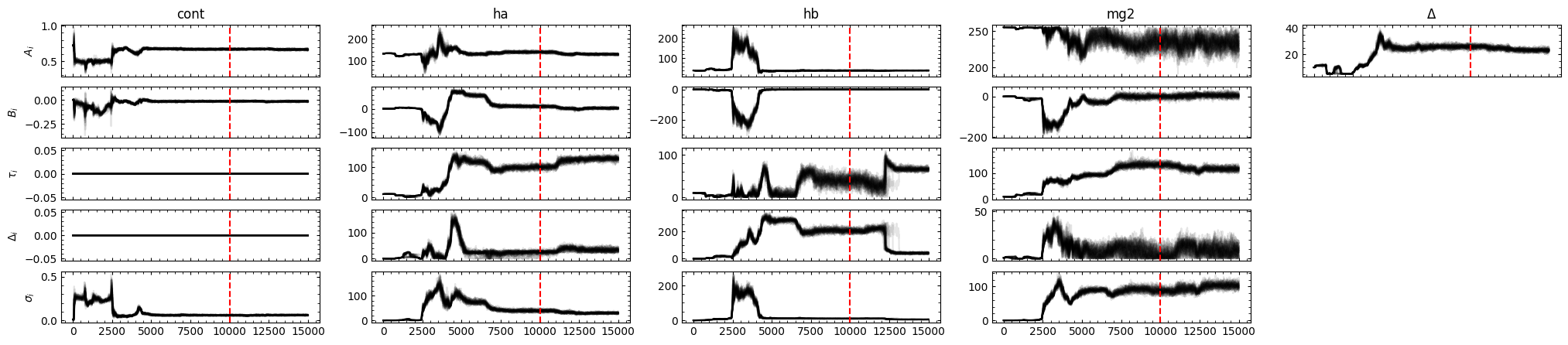

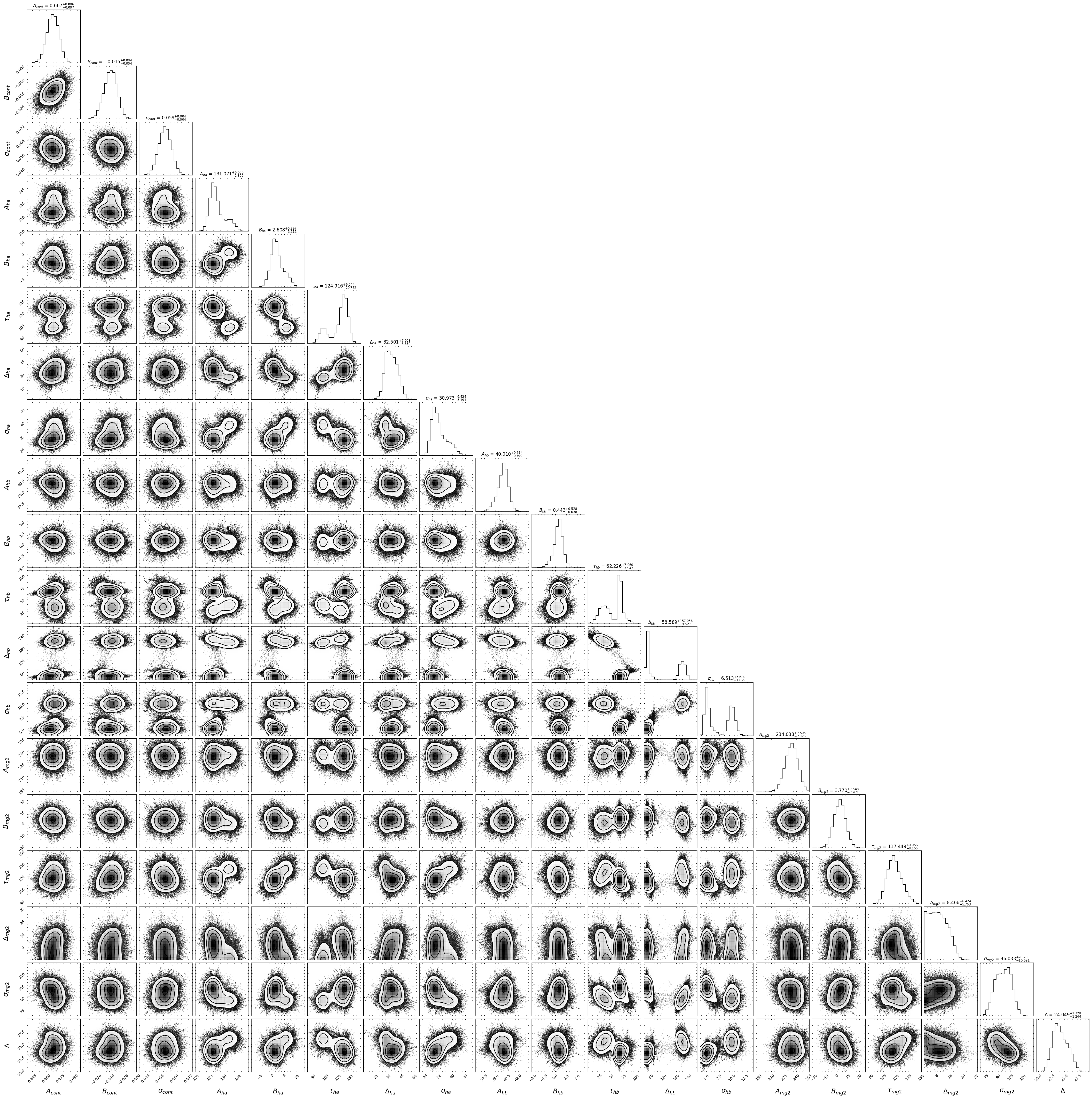

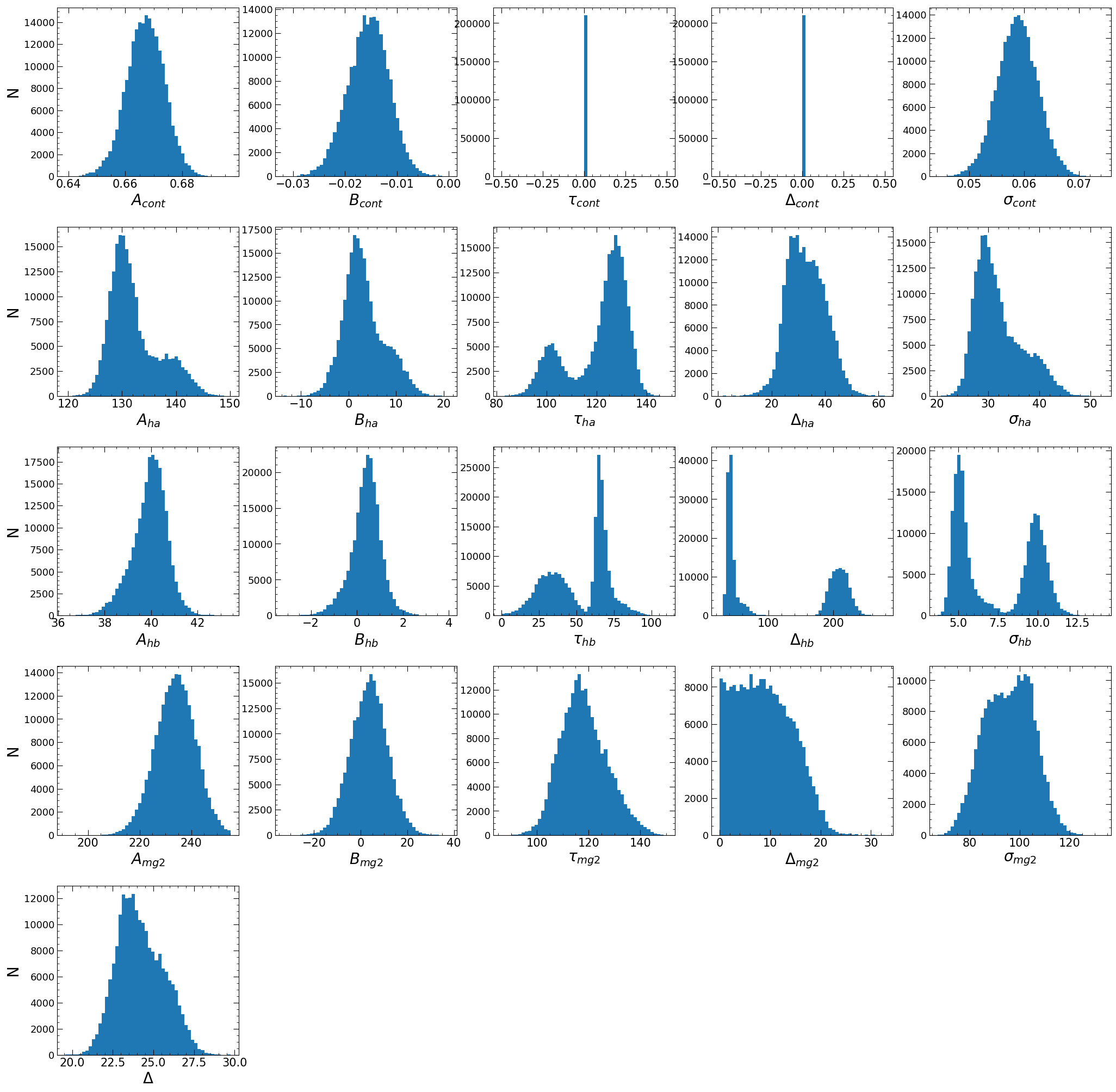

Best Fit Parameters
A0 B0 σ0 A1 B1 τ1 Δ1 σ1 A2 B2 τ2 Δ2 σ2 A3 B3 τ3 Δ3 σ3 Δ
------- ---------- --------- ------- ------- ------- ------- ------- ------- -------- ------- ------- ------- ------- ------- ------ ------- ------- -------
0.66711 -0.0154108 0.0588267 131.065 2.59755 124.914 32.5117 30.9587 40.0112 0.440908 62.2454 58.3884 6.48461 234.054 3.79858 117.43 8.47961 96.0668 24.0498
Run pyPetal-jav
[1]:
%matplotlib inline
import pypetal_jav.pipeline as plj
import numpy as np
line_names = ['cont', 'ha', 'hb', 'mg2']
output_dir = 'tot_output/'
[2]:
#Construct the drw_rej resulting dictionary with the parameters needed
taus = []
sigmas = []
reject_data = [True, False, False, False]
for i in range(len(reject_data)):
if reject_data[i]:
s, t = np.loadtxt( output_dir + line_names[i] + '/drw_rej/' + line_names[i] + '_chain.dat',
usecols=[0,1], unpack=True, delimiter=',')
sigmas.append(s)
taus.append(t)
drw_rej_res = {
'reject_data': reject_data,
'taus': taus,
'sigmas': sigmas
}
[4]:
_ = plj.run_pipeline( output_dir, line_names,
javelin_params=javelin_params,
use_for_javelin=True,
drw_rej_res=drw_rej_res,
verbose=True,
plot=True,
file_fmt='ascii',
time_unit='d',
lag_bounds=lag_bounds,
threads=40)
Running JAVELIN
--------------------
rm_type: spec
lagtobaseline: 0.3
laglimit: array
fixed: True
p_fix: True
subtract_mean: True
nwalker: 100
nburn: 100
nchain: 300
output_chains: True
output_burn: True
output_logp: True
nbin: 50
metric: med
together: False
--------------------
run parallel chains of number 40
start burn-in
no priors on sigma and tau
penalize lags longer than 0.30 of the baseline
nburn: 100 nwalkers: 100 --> number of burn-in iterations: 10000
burn-in finished
save burn-in chains to /home/stone28/pypetal/tot_output/ha/javelin/burn_rmap.txt
start sampling
sampling finished
acceptance fractions are
0.30 0.16 0.32 0.21 0.36 0.25 0.29 0.30 0.28 0.27 0.03 0.35 0.36 0.05 0.15 0.10 0.31 0.16 0.27 0.28 0.31 0.13 0.28 0.24 0.33 0.36 0.26 0.29 0.34 0.04 0.31 0.25 0.16 0.30 0.29 0.19 0.31 0.30 0.30 0.26 0.35 0.29 0.28 0.23 0.21 0.30 0.29 0.30 0.35 0.29 0.30 0.30 0.10 0.09 0.10 0.08 0.27 0.17 0.34 0.28 0.34 0.36 0.41 0.33 0.34 0.32 0.13 0.27 0.07 0.31 0.27 0.11 0.35 0.12 0.33 0.28 0.28 0.19 0.32 0.10 0.09 0.24 0.09 0.32 0.16 0.21 0.31 0.21 0.02 0.38 0.28 0.28 0.38 0.28 0.38 0.26 0.38 0.33 0.10 0.32
save MCMC chains to /home/stone28/pypetal/tot_output/ha/javelin/chain_rmap.txt
save logp of MCMC chains to /home/stone28/pypetal/tot_output/ha/javelin/logp_rmap.txt
HPD of sigma
low: 1.238 med 1.238 hig 1.238
HPD of tau
low: 5004.140 med 5004.140 hig 5004.140
HPD of lag_ha

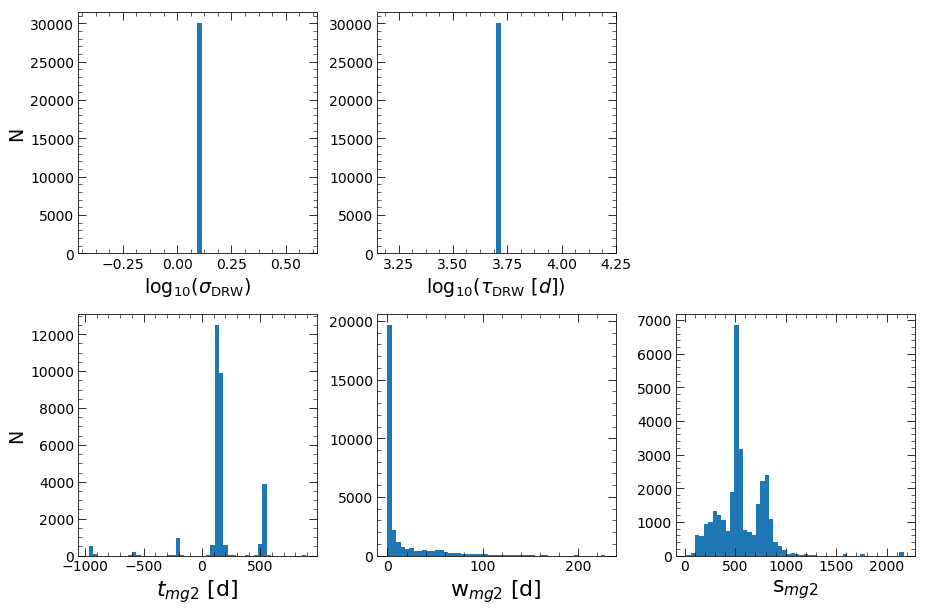

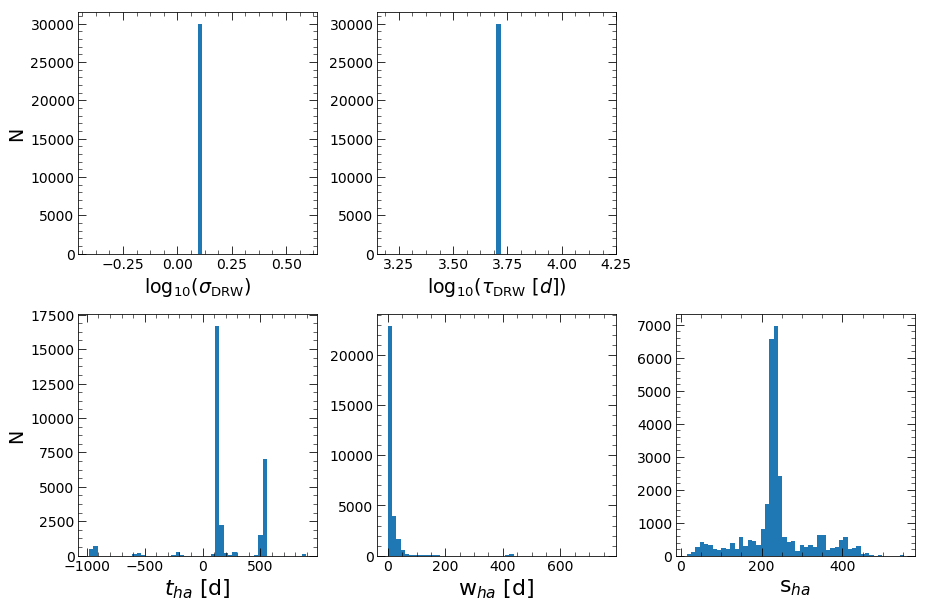

low: 138.582 med 141.629 hig 529.265
HPD of wid_ha
low: 0.793 med 4.411 hig 21.888
HPD of scale_ha
low: 189.335 med 231.292 hig 300.879
covariance matrix calculated
covariance matrix decomposed and updated by U
run parallel chains of number 40
start burn-in
no priors on sigma and tau
penalize lags longer than 0.30 of the baseline
nburn: 100 nwalkers: 100 --> number of burn-in iterations: 10000
burn-in finished
save burn-in chains to /home/stone28/pypetal/tot_output/hb/javelin/burn_rmap.txt
start sampling
sampling finished
acceptance fractions are
0.17 0.28 0.18 0.18 0.20 0.29 0.23 0.23 0.16 0.27 0.22 0.16 0.29 0.17 0.20 0.23 0.19 0.18 0.17 0.31 0.25 0.19 0.31 0.30 0.35 0.08 0.24 0.15 0.25 0.18 0.31 0.18 0.18 0.30 0.31 0.12 0.27 0.27 0.13 0.21 0.29 0.22 0.20 0.16 0.09 0.23 0.17 0.39 0.08 0.24 0.28 0.26 0.27 0.22 0.27 0.28 0.24 0.22 0.27 0.10 0.30 0.25 0.24 0.24 0.19 0.25 0.24 0.24 0.25 0.23 0.26 0.19 0.19 0.27 0.19 0.20 0.23 0.22 0.27 0.24 0.19 0.17 0.28 0.23 0.21 0.22 0.23 0.14 0.31 0.17 0.05 0.28 0.17 0.23 0.18 0.17 0.24 0.23 0.21 0.24
save MCMC chains to /home/stone28/pypetal/tot_output/hb/javelin/chain_rmap.txt
save logp of MCMC chains to /home/stone28/pypetal/tot_output/hb/javelin/logp_rmap.txt
HPD of sigma
low: 1.238 med 1.238 hig 1.238
HPD of tau
low: 5004.140 med 5004.140 hig 5004.140

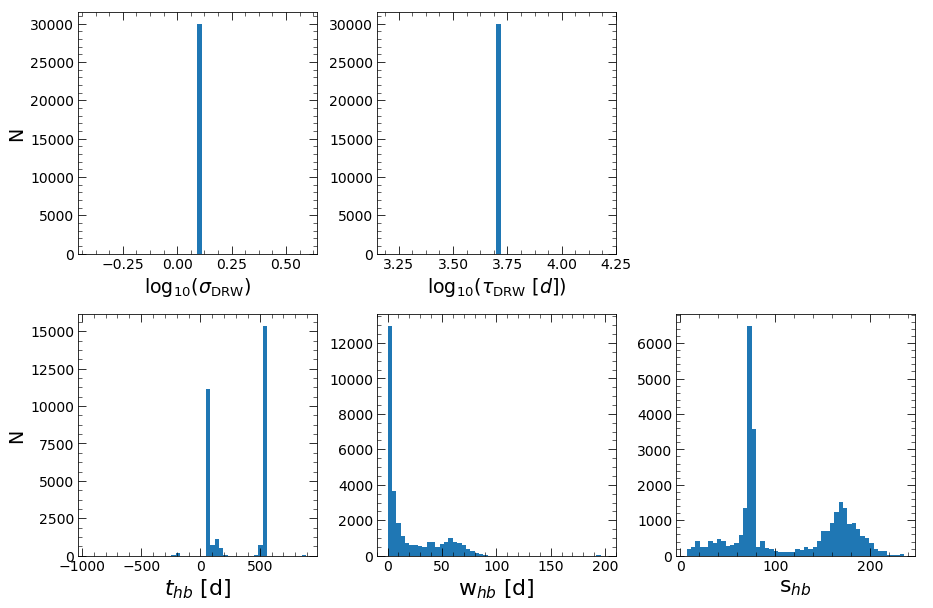

HPD of lag_hb
low: 63.157 med 526.910 hig 531.983
HPD of wid_hb
low: 0.728 med 5.840 hig 52.009
HPD of scale_hb
low: 67.886 med 77.023 hig 175.135
covariance matrix calculated
covariance matrix decomposed and updated by U
run parallel chains of number 40
start burn-in
no priors on sigma and tau
penalize lags longer than 0.30 of the baseline
nburn: 100 nwalkers: 100 --> number of burn-in iterations: 10000
burn-in finished
save burn-in chains to /home/stone28/pypetal/tot_output/mg2/javelin/burn_rmap.txt
start sampling
sampling finished
acceptance fractions are
0.22 0.19 0.20 0.20 0.17 0.21 0.21 0.07 0.07 0.22 0.14 0.22 0.22 0.16 0.18 0.13 0.25 0.14 0.21 0.27 0.15 0.21 0.06 0.24 0.10 0.25 0.23 0.23 0.17 0.10 0.14 0.21 0.08 0.20 0.14 0.22 0.21 0.17 0.20 0.27 0.25 0.28 0.08 0.17 0.20 0.17 0.19 0.20 0.19 0.23 0.15 0.19 0.24 0.23 0.21 0.18 0.26 0.21 0.22 0.10 0.22 0.19 0.22 0.23 0.20 0.18 0.19 0.22 0.07 0.23 0.26 0.18 0.23 0.22 0.24 0.20 0.23 0.25 0.20 0.18 0.25 0.22 0.17 0.18 0.19 0.19 0.20 0.24 0.03 0.08 0.22 0.16 0.18 0.20 0.07 0.27 0.20 0.18 0.21 0.22
save MCMC chains to /home/stone28/pypetal/tot_output/mg2/javelin/chain_rmap.txt
save logp of MCMC chains to /home/stone28/pypetal/tot_output/mg2/javelin/logp_rmap.txt
HPD of sigma
low: 1.238 med 1.238 hig 1.238
HPD of tau
low: 5004.140 med 5004.140 hig 5004.140
HPD of lag_mg2
low: 137.064 med 146.558 hig 193.121
HPD of wid_mg2
low: 0.103 med 0.979 hig 31.144
HPD of scale_mg2
low: 324.761 med 525.618 hig 790.061
covariance matrix calculated
covariance matrix decomposed and updated by U

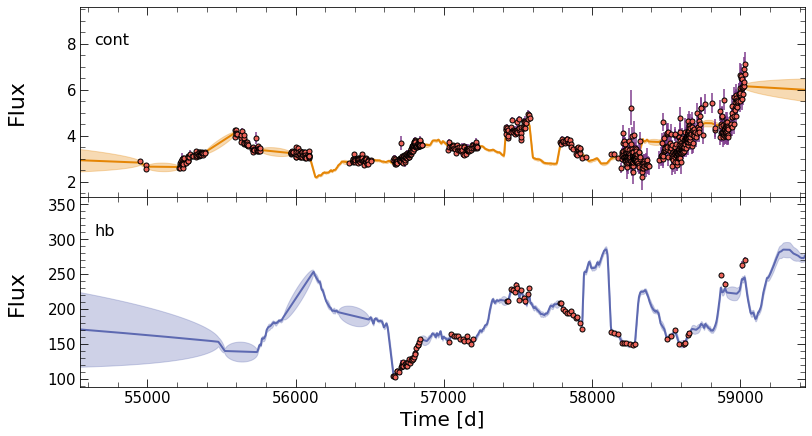

We can see that the JAVELIN fit for \({\rm H}\beta\) found a time lag in the seasonal gap, let’s see if the weighting can fix it.

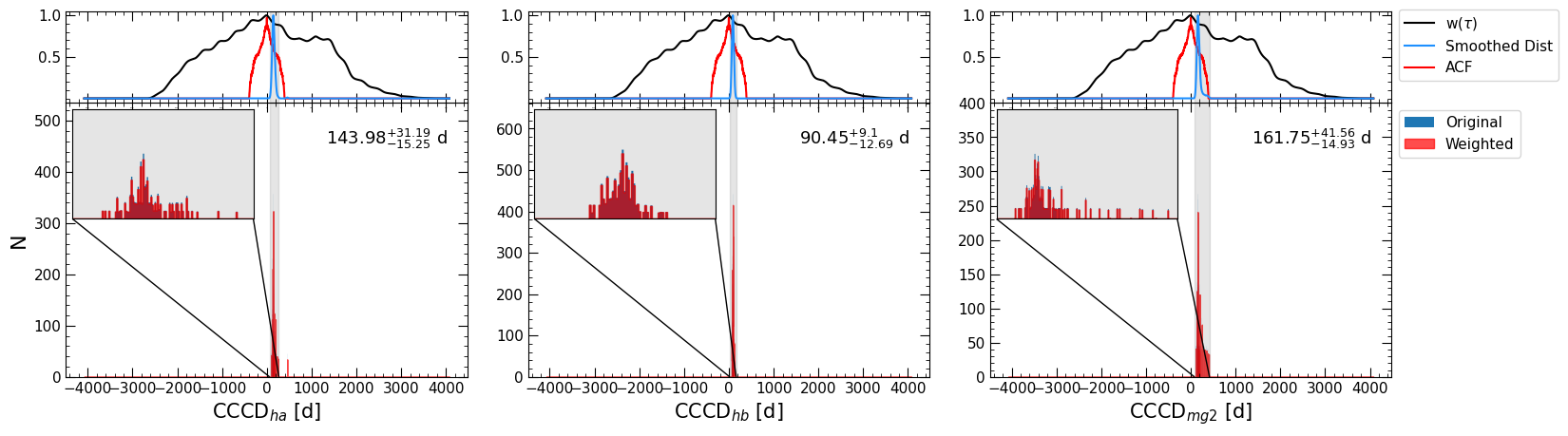

Run Weighting
[24]:
%matplotlib inline
import pypetal.pipeline as pl
line_names = ['cont', 'ha', 'hb', 'mg2']
output_dir = 'tot_output/'
[25]:
_ = pl.run_weighting( output_dir, line_names,
run_pyccf=True, pyccf_params=pyccf_params,
run_pyroa=True, pyroa_params=pyroa_params,
run_javelin=True, javelin_params=javelin_params,
weighting_params=weighting_params,
verbose=True,
plot=True,
file_fmt='ascii',
time_unit='d',
lag_bounds=lag_bounds,
threads=40)

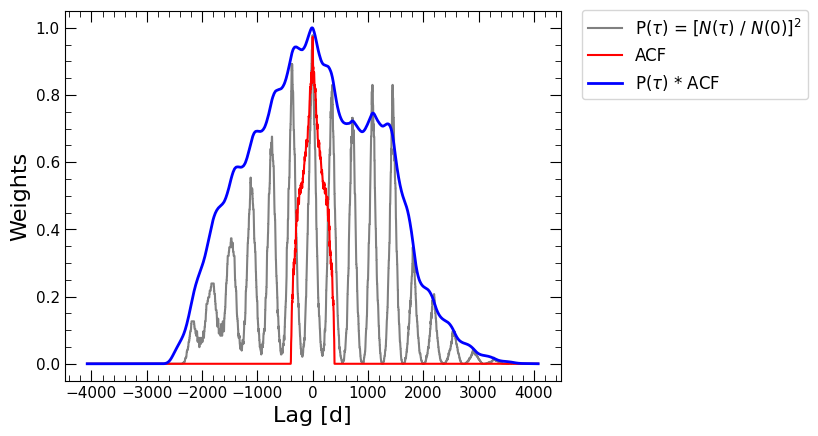

Results
[26]:
from pypetal.utils import load
res, summary = load('tot_output/', verbose=True)
Prior pyPetal run
---------------------
DRW Rejection: True
pyCCF: True
pyZDCF: True
PyROA: True
JAVELIN: True
Weighting: True
---------------------
[32]:
import numpy as np
print( 'line names:', res['weighting_res']['names'] )
print('')
#pyCCF lags
print( 'pyCCF lags:', np.array(res['weighting_res']['pyccf']['centroid']).T[1] )
print( 'pyCCF fraction rejected:', res['weighting_res']['pyccf']['frac_rejected'] )
print( 'pyCCF rmax:', res['weighting_res']['rmax_pyccf'] )
print('')
#PyROA lags
print( 'PyROA lags:', np.array(res['weighting_res']['pyroa']['time_delay']).T[1] )
print( 'PyROA fraction rejected:', res['weighting_res']['pyroa']['frac_rejected'] )
print( 'PyROA rmax:', res['weighting_res']['rmax_pyroa'] )
print('')
#JAVELIN lags
print( 'JAVELIN lags:', np.array(res['weighting_res']['javelin']['tophat_lag']).T[1] )
print( 'JAVELIN fraction rejected:', res['weighting_res']['javelin']['frac_rejected'] )
print( 'JAVELIN rmax:', res['weighting_res']['rmax_javelin'] )
line names: ['mg2', 'ha', 'hb']
pyCCF lags: [161.74835 143.97702 90.45125]
pyCCF fraction rejected: [0.0, 0.009, 0.0]
pyCCF rmax: [0.7168318, 0.7787244, 0.86478585]
PyROA lags: [117.44938 124.91558 62.226303]
PyROA fraction rejected: [0.0, 0.0, 0.0]
PyROA rmax: [0.7254955, 0.7844358, 0.8867146]
JAVELIN lags: [142.36792 140.56485 530.4232 ]
JAVELIN fraction rejected: [0.2165, 0.36016667, 0.46193334]
JAVELIN rmax: [0.72558135, 0.7767819, 0.11873911]
The lag results obtained in this run are relatively good, with high \(r_{max}\), low fraction rejected for pyCCF, and decent fraction rejected for JAVELIN.
The one issue we’ve encountered is that the JAVELIN lag for \({\rm H}\beta\) landed in a false peak, due to the seasonal gaps. We could tell that this fit was poor from the \(r_{max}\) value and the fraction rejected. The weighting didn’t solve this, but the weighting parameters can be adjusted to help with this (such as adjusting k or rel_height).
[36]:
from pypetal.utils.petalio import err2str
fix_str = {
ord('{'): ' ',
ord('}'): None,
ord('^'): None,
ord('_'): None
}
ha_cent = res['weighting_res']['pyccf']['centroid'][1]
ha_pyroalag = res['weighting_res']['pyroa']['time_delay'][1]
ha_javlag = res['weighting_res']['javelin']['tophat_lag'][1]
print( 'H-alpha pyCCF lag:', err2str( ha_cent[1], ha_cent[2], ha_cent[0] ).translate(fix_str) )
print( 'H-alpha PyROA lag:', err2str( ha_pyroalag[1], ha_pyroalag[2], ha_pyroalag[0] ).translate(fix_str) )
print( 'H-alpha JAVELIN lag:', err2str( ha_javlag[1], ha_javlag[2], ha_javlag[0] ).translate(fix_str) )
print('')
hb_cent = res['weighting_res']['pyccf']['centroid'][2]
hb_pyroalag = res['weighting_res']['pyroa']['time_delay'][2]
hb_javlag = res['weighting_res']['javelin']['tophat_lag'][2]
print( 'H-beta pyCCF lag:', err2str( hb_cent[1], hb_cent[2], hb_cent[0] ).translate(fix_str) )
print( 'H-beta PyROA lag:', err2str( hb_pyroalag[1], hb_pyroalag[2], hb_pyroalag[0] ).translate(fix_str) )
print( 'H-beta JAVELIN lag:', err2str( hb_javlag[1], hb_javlag[2], hb_javlag[0] ).translate(fix_str) )
print('')
mg2_cent = res['weighting_res']['pyccf']['centroid'][0]
mg2_pyroalag = res['weighting_res']['pyroa']['time_delay'][0]
mg2_javlag = res['weighting_res']['javelin']['tophat_lag'][0]
print( 'MgII pyCCF lag:', err2str( mg2_cent[1], mg2_cent[2], mg2_cent[0] ).translate(fix_str) )
print( 'MgII PyROA lag:', err2str( mg2_pyroalag[1], mg2_pyroalag[2], mg2_pyroalag[0] ).translate(fix_str) )
print( 'MgII JAVELIN lag:', err2str( mg2_javlag[1], mg2_javlag[2], mg2_javlag[0] ).translate(fix_str) )
H-alpha pyCCF lag: 143.98 +31.19 -15.25
H-alpha PyROA lag: 124.92 +6.34 -20.78
H-alpha JAVELIN lag: 140.56 +3.03 -1.93
H-beta pyCCF lag: 90.45 +9.1 -12.69
H-beta PyROA lag: 62.23 +7.06 -33.47
H-beta JAVELIN lag: 530.42 +2.62 -2.16
MgII pyCCF lag: 161.75 +41.56 -14.93
MgII PyROA lag: 117.45 +9.96 -8.15
MgII JAVELIN lag: 142.37 +35.2 -3.85

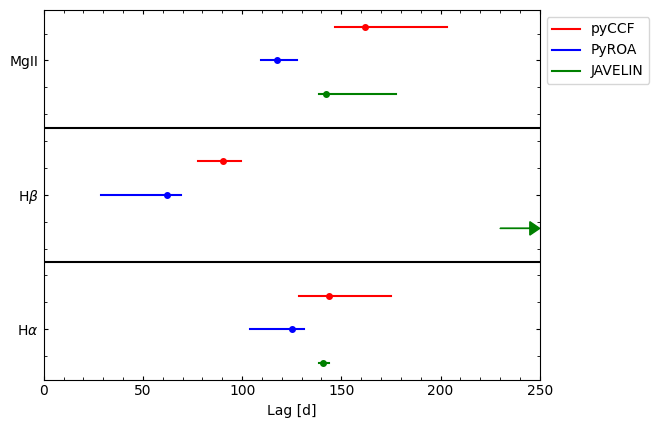

[73]:
import matplotlib.pyplot as plt
fig, ax = plt.subplots(sharex=True)
ha_yvals = np.ones(2)
hb_yvals = np.ones(2)*2
mg2_yvals = np.ones(2)*3
pyccf_color = 'r'
pyroa_color = 'b'
javelin_color = 'g'
#ha
ax.plot( [ha_cent[1]-ha_cent[0], ha_cent[1]+ha_cent[2]], ha_yvals+.25, c=pyccf_color, label='pyCCF' )
ax.plot( [ha_cent[1]], ha_yvals[0]+.25, marker='.', lw=0, c=pyccf_color, ms=8 )
ax.plot( [ha_pyroalag[1]-ha_pyroalag[0], ha_pyroalag[1]+ha_pyroalag[2]], ha_yvals, c=pyroa_color, label='PyROA' )
ax.plot( [ha_pyroalag[1]], ha_yvals[0], marker='.', lw=0, c=pyroa_color, ms=8 )
ax.plot( [ha_javlag[1]-ha_javlag[0], ha_javlag[1]+ha_javlag[2]], ha_yvals-.25, c=javelin_color, label='JAVELIN' )
ax.plot( [ha_javlag[1]], ha_yvals[0]-.25, marker='.', lw=0, c=javelin_color, ms=8 )
#hb
ax.plot( [hb_cent[1]-hb_cent[0], hb_cent[1]+hb_cent[2]], hb_yvals+.25, c=pyccf_color )
ax.plot( [hb_cent[1]], hb_yvals[0]+.25, marker='.', lw=0, c=pyccf_color, ms=8 )
ax.plot( [hb_pyroalag[1]-hb_pyroalag[0], hb_pyroalag[1]+hb_pyroalag[2]], hb_yvals, c=pyroa_color )
ax.plot( [hb_pyroalag[1]], hb_yvals[0], marker='.', lw=0, c=pyroa_color, ms=8 )
ax.plot( [hb_javlag[1]-hb_javlag[0], hb_javlag[1]+hb_javlag[2]], hb_yvals-.25, c=javelin_color )
ax.plot( [hb_javlag[1]], hb_yvals[0]-.25, marker='.', lw=0, c=javelin_color, ms=8 )
#mg2
ax.plot( [mg2_cent[1]-mg2_cent[0], mg2_cent[1]+mg2_cent[2]], mg2_yvals+.25, c=pyccf_color )
ax.plot( [mg2_cent[1]], mg2_yvals[0]+.25, marker='.', lw=0, c=pyccf_color, ms=8 )
ax.plot( [mg2_pyroalag[1]-mg2_pyroalag[0], mg2_pyroalag[1]+mg2_pyroalag[2]], mg2_yvals, c=pyroa_color )
ax.plot( [mg2_pyroalag[1]], mg2_yvals[0], marker='.', lw=0, c=pyroa_color, ms=8 )
ax.plot( [mg2_javlag[1]-mg2_javlag[0], mg2_javlag[1]+mg2_javlag[2]], mg2_yvals-.25, c=javelin_color )
ax.plot( [mg2_javlag[1]], mg2_yvals[0]-.25, marker='.', lw=0, c=javelin_color, ms=8 )
ax.arrow( 230, hb_yvals[0]-.25, 15, 0, head_width=.1, head_length=5, fc='g', ec='g' )
ax.set_yticks([ 1, 2, 3 ])
ax.set_yticklabels([r'H$\alpha$', r'H$\beta$', 'MgII'])
ax.axhline(2.5, color='k')
ax.axhline(1.5, color='k')
ax.legend(bbox_to_anchor=(1,1))
ax.set_xlim(0, 250)
ax.set_xlabel('Lag [d]')
plt.show()
We can see that in general, the lags agree each other (with lags from PyROA being shorter than the other two by \(\sim 20 \ d\)). The PyROA lags could be improved by choosing a different delay distribution, or adding more samples.

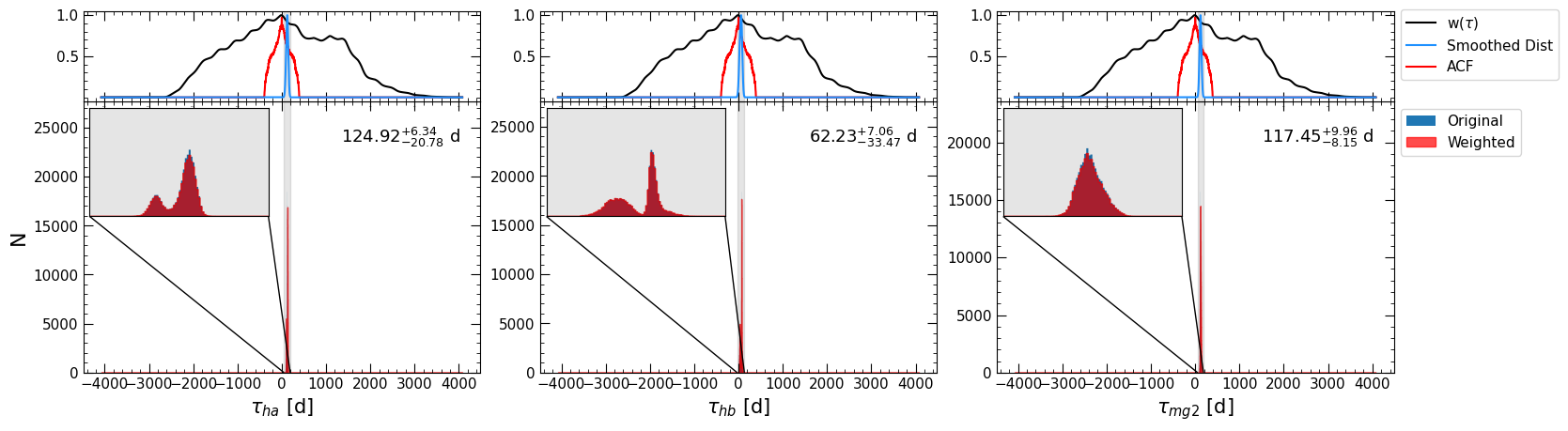

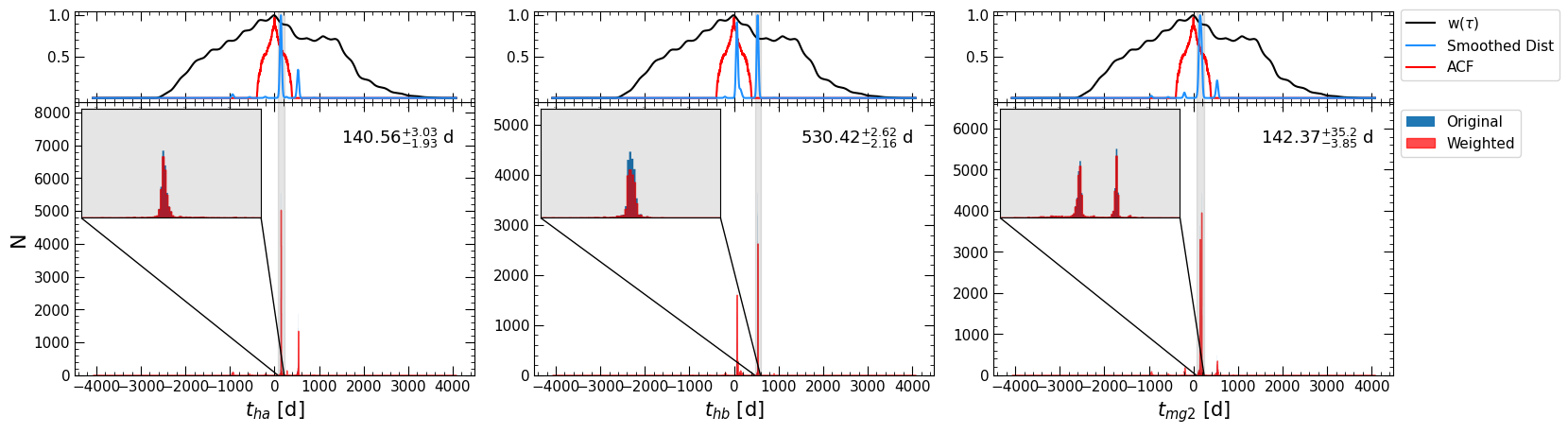

The JAVELIN and pyCCF lags agree well on \({\rm H}\alpha\) and \({\rm MgII}\), but not on \({H \beta}\) due to aliasing from the seasonal gaps. This could be improved either by adjusting the number of chain samples in JAVELIN, or the weighting procedure.
